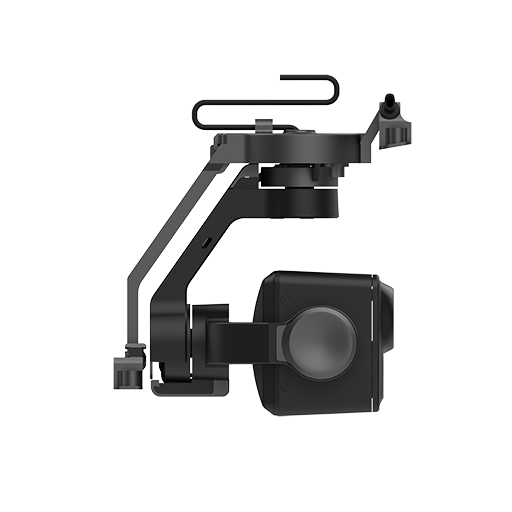

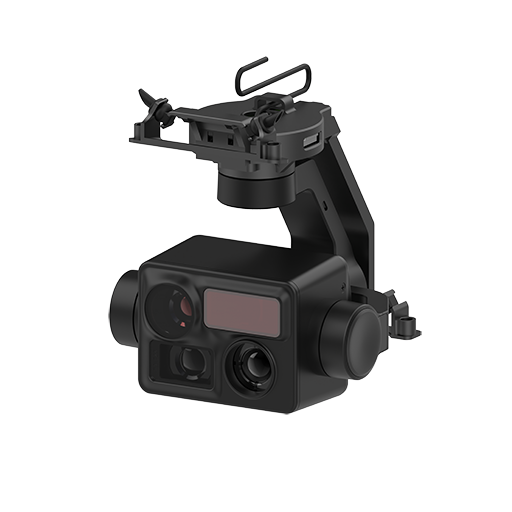

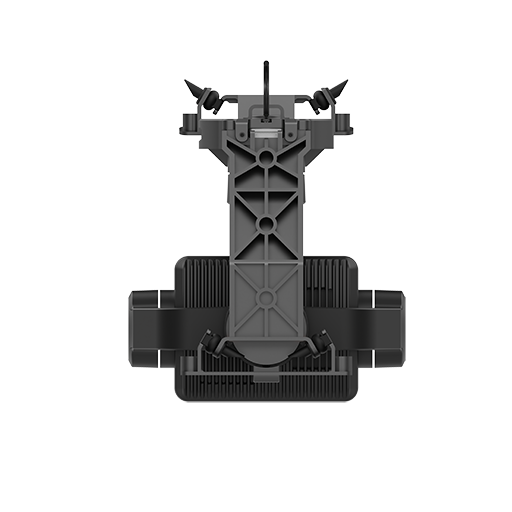

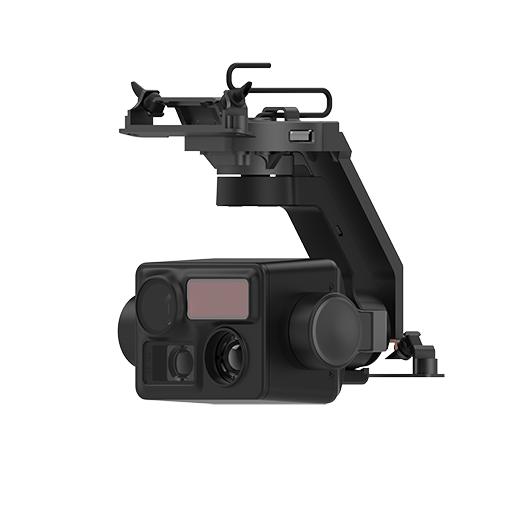

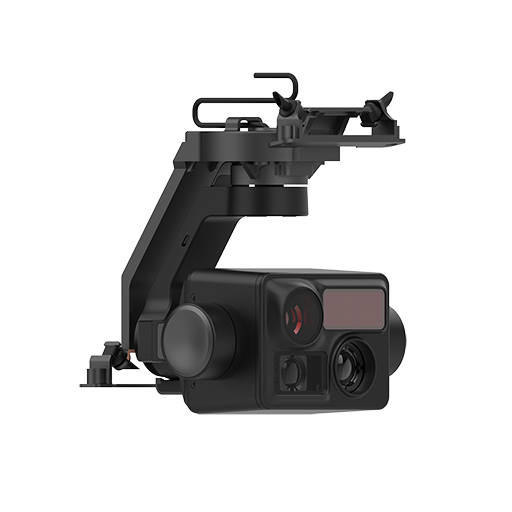

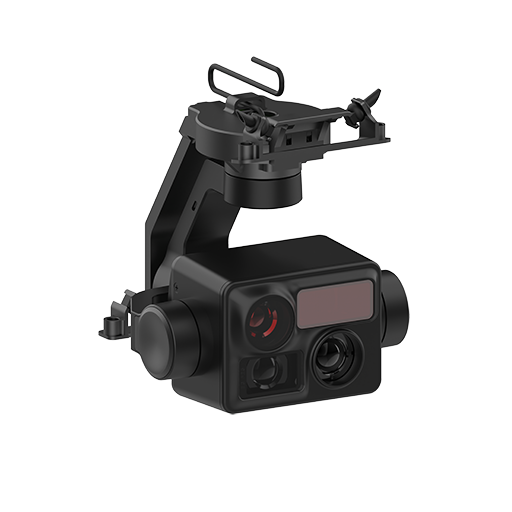

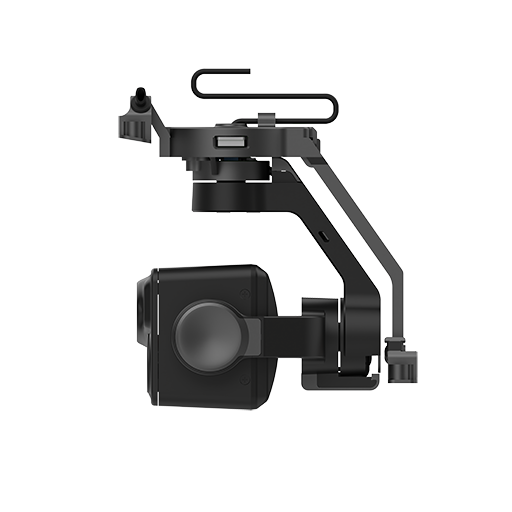

Compact Quad-sensor Pod YDDC-4G091203
≤140 g lightweight payload
Model: YDDC-4G091203
Overview
A compact quad-sensor pod with dual EO, IR and laser ranging—about 130 g, 90 Hz tracking bandwidth—for day/night intelligent recognition, positioning and tracking of ground and high-maneuver aerial targets.
Highlights
- Multispectral fusion sensing
- High-precision laser ranging
- All-around environmental awareness
- Compatible with multiple UAV platforms
- Built for inspection and reconnaissance
Key Features
- Multispectral fusion: integrates telephoto EO, wide-angle EO, thermal IR and laser ranging to capture visible, IR and range data together.
- High-precision laser ranging: built-in LRF provides distance data for recognition, precise positioning and navigation aid.
- All-weather target sensing: EO and IR work together for recognition and monitoring day/night and in complex environments.
- High-dynamics tracking: 90 Hz servo tracking bandwidth delivers accurate tracking of ground targets and high-speed, high-maneuver aerial targets.
- Compact and lightweight: ≤140 g, suited to small UAV platforms and low-payload missions.
- Multi-mission ready: supports UAV inspection, reconnaissance and target positioning/monitoring in complex scenes.
Specifications
| IR | 640×512, 9.1 mm |
|---|---|
| Tele EO | ≥3864×2192, 12 mm |
| Wide EO | ≥3864×2192, 3 mm |
| LRF | 5–1000 m, ±1 m |
| Tracking BW | 90 Hz |
| Weight | ≤140 g |
